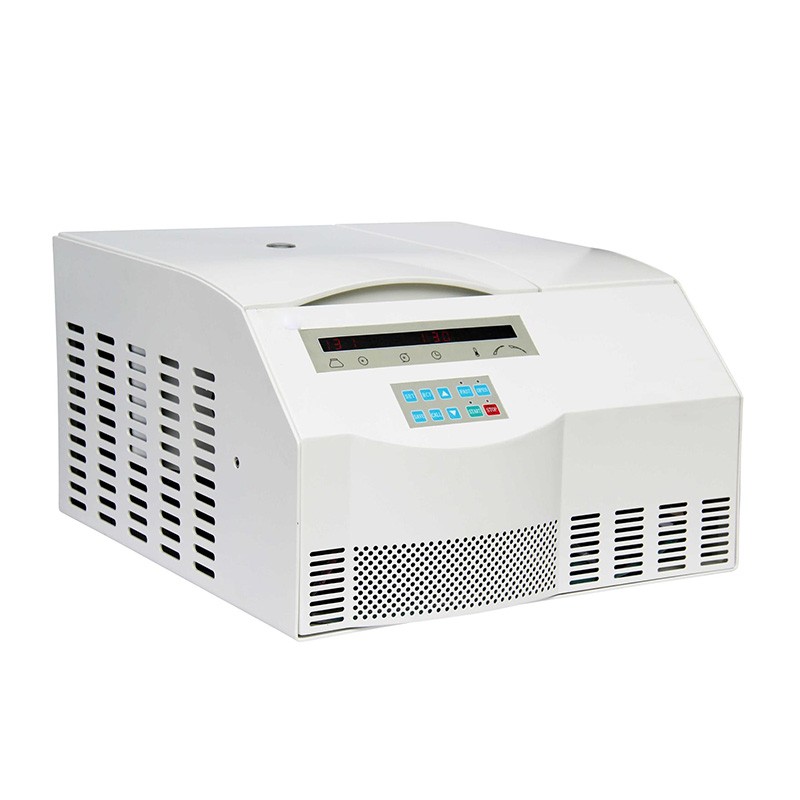

TGL-16E技術參數（Technical Parameters)
|
最高轉速Max Speed |
16000r/min |
|
最大容量Max Volume |
6×10ml |
|
定時范圍Timer |
99min59s |
|
外型尺寸Dimension |
480*480*275mm |
|
控速精度Speed Accuracy |
±20r/min |
|
溫控精度Temperature Accuracy |
±1℃ |
|
最大離心力Max RCF |
19040*g |
|
溫控范圍Temperature Range |
-20℃～40℃ |
|
噪音Noise |
≤55dBA |
|
凈重Net Weight |
43KG |
|
電源Power supply |
AC220V,50HZ,5A |
TGL-16E適配轉子（Matched Rotors)
|
編號 NO |
轉頭號 Rotors NO |
最高轉速 Max Speed(r/min) |
容量 Volume(ml) |
最大離心力 MaxRCF(×g) |
|
No31001 |
角轉子Fixed rotor |
16000r/min |
40×0.2ml |
19040×g |
|
No30416 |
角轉子Fixed rotor |
13000r/min |
30×0.5ml |
13900×g |
|
No31003 |
角轉子Fixed rotor |
16000r/min |
12×1.5/2ml |
17940×g |
|
No31004 |
角轉子Fixed rotor |
14000r/min |
20×1.5/2ml |
15580×g |
|
No31005 |
角轉子Fixed rotor |
13000r/min |
24×1.5/2ml |
15470×g |
|
No31006 |
角轉子Fixed rotor |
13000r/min |
30×1.5/2ml |
17930×g |
|
NO30447 |
角轉子Fixed rotor |
13000r/min |
4×8PCR |
10410×g |
|
NO30448 |
角轉子Fixed rotor |
13000 r/min |
6×8PCR |
16080×g |
|
NO30449 |
角轉子Fixed rotor |
13000r/min |
8×8PCR |
11540×g |
|
NO30450 |
角轉子Fixed rotor |
13000 r/min |
12×8PCR |
17220×g |
|
No30451 |
角轉子Fixed rotor |
12000r/min |
24支毛細管 |
15800×g |
|
No30104 |
角轉子Fixed rotor |
16000r/min |
10×5ml |
17880×g |
|
No31009 |
角轉子Fixed rotor |
13000r/min |
6×10ml |
14190×g |
